SkySphere
A New Way to Experience Flight

Imagine sitting comfortably in a chair… and suddenly feeling as if you’ve lifted off the ground. Not in a plane. Not in a simulator. But as if you’ve become the drone itself. SkySphere is a completely new kind of experience where you step inside a giant sphere, and the world appears all around you — above, below, and on every side. The entire space becomes your window into the sky. Instead of watching a screen, you’re inside the view. As the drone rises, glides, and drifts through mountains, coastlines, forests, or cities, the sphere moves the world around you so smoothly that your body begins to believe you’re floating. Gentle motion under your seat gives you the feeling of climbing, banking, or hovering, without ever leaving the ground. It’s calm, weightless, and incredibly immersive. You’re not controlling a machine — you’re simply raising a hand to drift upward, leaning slightly to slide left or right, or holding still to hover. The system responds naturally, almost like it can read your intention. It’s not a ride. It’s not VR. It’s not a movie. It’s the closest thing to borrowing a bird’s perspective — a peaceful, breathtaking aerial journey you share with others in the same sphere. Experience flight as you’ve never imagined.

SkySphere is a multi-sensory system designed to let a visitor temporarily inhabit the aerial perspective of a drone through a tightly synchronised integration of capture, encoding, projection, motion, audio, and interaction subsystems. The visitor remains physically fixed at the centre of a spherical projection chamber while the recorded world moves around them with perfect spatial and temporal coherence. This inversion of conventional simulation logic — anchoring the body while mobilising the environment — creates a stable aerial reference frame in which the visitor experiences the drone’s viewpoint as an embodied perceptual state rather than as a visual feed.

The system treats drone recordings as structured memory objects rather than videos. Each memory is captured as 360‑degree imagery, spatial audio, and telemetry streams including altitude, velocity, orientation, and acceleration. These data are encoded into a unified memory file containing synchronised visual, acoustic, and motion timelines. During playback, the system reconstructs the memory as a live environment in which the visitor’s sensory channels remain aligned through a global timecode. The illusion of aerial presence depends on the absence of latency differentials between what the visitor sees, hears, and feels.

To support non‑linear navigation, the aerial environment is captured as a multi-path dataset rather than a single flight. Drone operators map the environment into a three‑dimensional lattice of waypoints connected by multiple flight variants — horizontal passes, vertical climbs, diagonal transitions, and altitude‑layer arcs. Each segment is recorded in several speed and positional offsets to provide redundancy and allow the system to respond to user intent without synthetic interpolation. These segments are transformed into a graph structure in which nodes represent spatial positions and edges represent drone movements enriched with video, telemetry, and audio metadata.

During the experience, the engine evaluates user gestures and selects the most coherent edge that matches the intended direction. Orientation matching, crossfading, and motion‑curve blending ensure that transitions between edges remain perceptually continuous. The result is a fluid, embodied aerial journey that feels natural, intuitive, and physically plausible.

The conceptual model establishes what the SkySphere achieves; the system architecture explains how it achieves it. SkySphere operates as a distributed real‑time system that transforms multi-path drone recordings into a navigable, embodied aerial environment rendered inside a spherical projection chamber. The architecture is composed of five tightly coupled layers — capture and ingestion, content modelling, real‑time experience orchestration, multi-sensory output subsystems, and safety/operations — all bound to a unified spatial reference frame and a global temporal model. This ensures that any change in state, such as a visitor gesture indicating ascent or lateral drift, propagates coherently across video, motion, and audio channels without perceptual discontinuity.

Drone operators fly through a predefined three‑dimensional lattice of waypoints, capturing 360° video, multi‑channel spatial audio, and high‑frequency telemetry including IMU data, GPS, barometric altitude, and orientation quaternions. A capture daemon time‑aligns these streams using PTP‑synchronised clocks, normalises sampling rates, and performs sensor fusion to produce a stable pose trajectory. Derived metrics such as jerk, bank angle, climb rate, and angular velocity are computed for later use in haptic envelope generation. The output is a temporally coherent, spatially stable dataset ready for graph construction.

The ingestion pipeline transforms continuous flight recordings into a navigable drone memory graph. Each edge contains a time‑indexed 360° video segment, a telemetry track, spatial audio stems, and precomputed haptic motion curves. Nodes store 3D coordinates, canonical orientation, and semantic metadata such as terrain type or landmark classification. The graph is stored in a hybrid architecture combining a graph database for topology, a high‑throughput media store for video and audio, and a time‑series database for telemetry. Spatial indexes allow the runtime engine to query edges by direction, altitude, or motion profile with minimal latency.

The experience engine is the central orchestrator that binds user intent, graph traversal, and multi-sensory output into a coherent aerial environment. A session manager maintains the visitor’s current node, active edge, playback time, and mode (guided, exploratory, meditative, narrative). Gesture events from the tracking subsystem are classified into high‑level intents such as ascent, descent, lateral drift, or forward progression. These intents trigger graph queries and edge selection. The engine computes blend windows for transitions, aligning orientation and motion curves to maintain perceptual continuity. Predictive buffering ensures that future frames, audio buffers, and telemetry samples are preloaded for seamless switching.

The system’s gesture‑to‑transition cycle is engineered to feel instantaneous while remaining fully synchronised across visual, audio, and haptic channels. From the moment a gesture is detected, the engine moves through a deterministic sequence: classifying intent, querying the drone memory graph, selecting and pre‑buffering the next edge, aligning orientation through quaternion interpolation, initiating a coordinated crossfade, executing the motion and soundfield shift, and finally stabilising all subsystems back onto the global clock. The entire process completes in 500–800 milliseconds, maintaining the illusion of continuous, embodied flight — see the table below for the full integrated timing model.

All subsystems operate under a global timebase maintained by a high‑precision clock service. The system advances in discrete ticks (≈240 Hz), with subsystems updating at their own effective rates: video at 60 fps, motion sampling at 500 Hz, audio buffers at ~5 ms latency, and gesture polling at 30 Hz. Predictive buffering maintains a sliding window of future frames and telemetry samples, enabling instantaneous transitions. When switching edges, the engine aligns pose and orientation using quaternion interpolation and updates all sensory channels simultaneously. This prevents drift between visual, vestibular, and auditory cues — the core requirement for embodied aerial presence.

The system’s transition logic ensures that user‑driven direction changes feel fluid and continuous. Gesture events are interpreted as directional intent rather than direct control inputs. The experience engine retrieves candidate edges matching direction and comfort constraints, pre‑decodes video and motion data, and initiates a synchronised crossfade across visual, audio, and haptic channels. Once the new edge is committed, predictive buffering resumes, maintaining seamless continuity.

The projection sphere is a precision‑engineered optical enclosure designed to maintain a stable, distortion‑free aerial reference frame. Its diameter typically ranges from 8 to 12 metres, optimised for a single‑viewer central vantage point. The structure is built from composite panels mounted on a rigid truss frame, with curvature tolerances kept below ±2 mm to prevent projection artefacts.

The interior surface is coated with a high‑gain, micro‑textured projection compound engineered for uniform luminance distribution, minimal hotspotting, wide‑angle reflectance, and high dynamic range. Seamless multi‑projector blending ensures that the drone’s perspective remains accurate from the centre of the chamber.

Acoustically, the sphere functions as a controlled cavity. Micro‑diffusers break up standing waves, low‑profile absorbers prevent low‑frequency buildup, and speaker placement is optimised for spherical harmonics rendering. The haptic chair is mounted on a vibration‑isolated plinth decoupled from the sphere’s structural frame, preventing actuator vibrations from propagating into the projection surface.

The haptic system is a precision motion platform engineered to replicate the drone’s macro-movements while maintaining comfort and vestibular stability. It typically uses a 3‑ or 4‑DOF Stewart‑derived platform supporting pitch, roll, heave, and micro‑yaw. Actuators are servo‑driven with sub‑millisecond command latency and sub‑millimetre positional resolution, using jerk‑limited motion profiles for comfort.

During content authoring, drone telemetry is analysed to extract climb/descent curves, bank angles, acceleration envelopes, and directional changes. These are converted into platform‑specific trajectories using inverse kinematics and comfort‑bounded smoothing.

At runtime, the motion engine samples haptic curves at 500 Hz, applies smoothing filters, and sends actuator setpoints via deterministic fieldbus. A closed‑loop controller reads actuator encoders, platform IMU data, and load sensors to maintain phase alignment with visual and audio streams. Safety envelopes enforce hard limits on angle, velocity, and acceleration, with emergency stop mechanisms that instantly brake and centre the platform.

The audio subsystem uses a multi‑channel speaker array and a real‑time spatialisation engine. Drone audio is decomposed into environmental beds and directional stems during encoding. At runtime, the audio engine receives the current pose and applies 3D panning algorithms such as VBAP or HOA decoding. Doppler effects, altitude‑dependent filtering, and environmental modulation are applied procedurally based on telemetry.

The interaction subsystem uses depth cameras, IR sensors, or machine‑vision pipelines to detect body posture and gestures. Raw sensor frames undergo background subtraction, skeleton fitting, and temporal smoothing. A gesture recogniser classifies joint trajectories into discrete events with hysteresis and confidence thresholds to avoid false positives.

A supervisory control layer monitors all subsystems, including platform state, projector health, audio levels, environmental sensors, and emergency stop inputs. It can override the experience engine to bring the system to a safe state — halting motion, freezing video, fading audio, and unlocking doors. Comfort profiles adjust motion scaling, visual pacing, and audio dynamics.

The content pipeline transforms raw capture data into deployable drone memory bundles. Authoring tools allow designers to inspect graph topology, preview transitions, adjust motion curves, and annotate segments with semantic tags. A build system packages media, telemetry, graph definitions, and configuration into versioned bundles. A content manager handles installation, integrity checks, and rollback across venues.

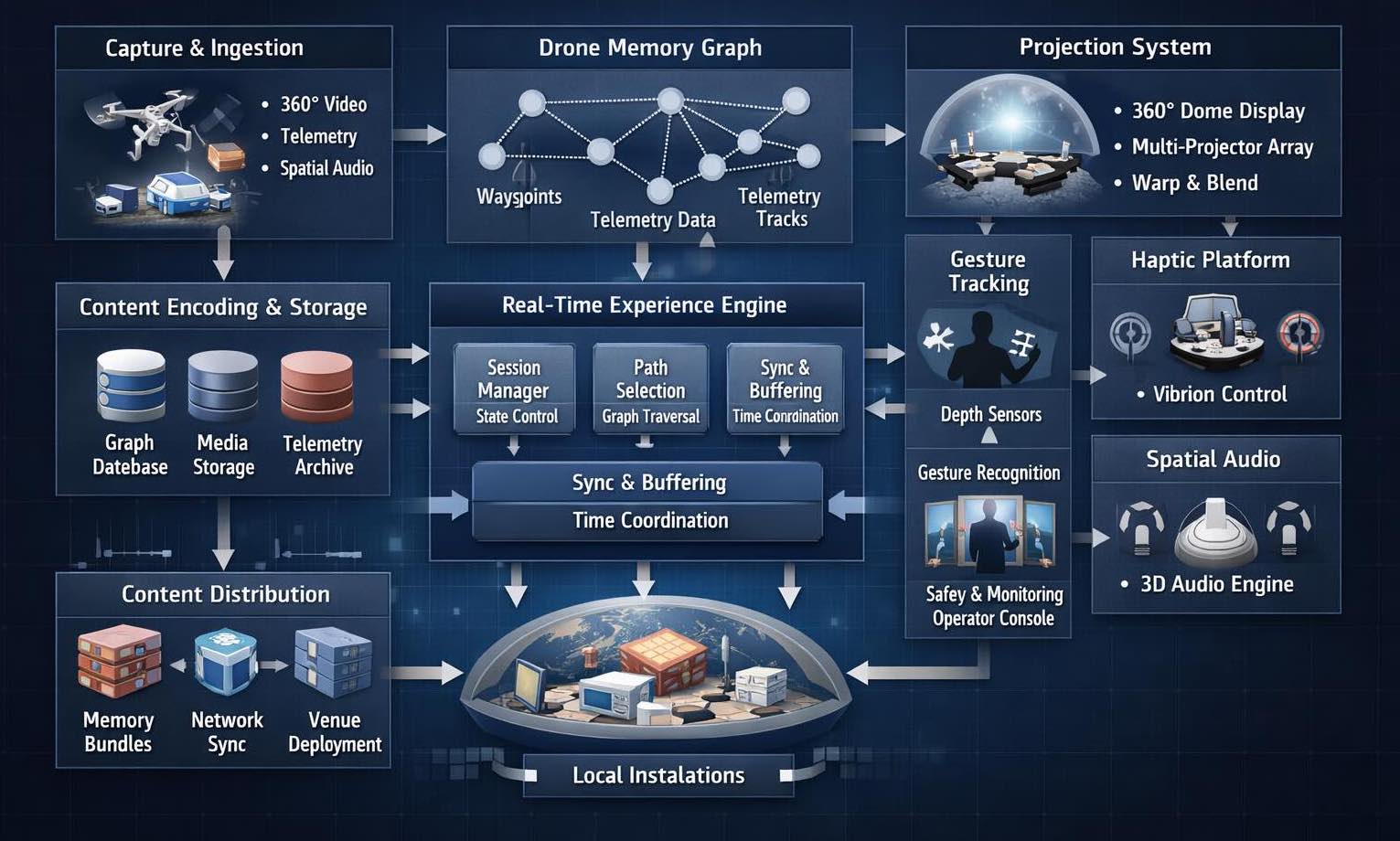

The diagram below provides an overview of the SkySphere system architecture.

With the architecture defined, the next question is where the system creates value. SkySphere is not a single attraction; it is a multi-domain experiential platform capable of serving entertainment, education, tourism, cultural storytelling, wellness, and professional use. Each application draws on the same architectural foundation — the drone memory graph, the projection sphere, and the embodied aerial perspective — but expresses it through different pacing, emotional tone, and narrative logic.

SkySphere introduces a new category of attraction for immersive entertainment spaces. Unlike VR arcades or dome cinemas, it offers a shared, embodied experience where visitors feel suspended in the air together. The absence of headsets makes the experience social, immediate, and visually spectacular. Venues can run sessions every 10–20 minutes, allowing groups to enter and exit in a smooth rhythm. Because the content library is modular, operators can rotate experiences seasonally or thematically without altering the physical installation.

SkySphere becomes a powerful educational tool when paired with curated drone memories of natural and built environments. The embodied aerial perspective allows learners to understand scale, topology, and spatial relationships in ways that flat media cannot. Environmental change becomes especially vivid when comparative drone memories captured months or years apart reveal glacier retreat, deforestation, coastal erosion, or urban expansion.

Tourism boards and cultural institutions can use SkySphere to showcase landscapes and heritage sites in a way that is both spectacular and respectful. Visitors can explore destinations before travelling, drifting over historic cities, mountain ranges, or coastlines. The system also offers access to places that are fragile, remote, or dangerous, supporting sustainable tourism by reducing physical impact.

Urban planners, architects, environmental researchers, and emergency responders can use drone memories for training, analysis, and situational awareness. The embodied perspective reveals relationships between terrain, vegetation, water flow, and human activity that are difficult to perceive from ground‑level data.

SkySphere is also a medium for artists. Drone pilots can design flights as choreographed movements through space, turning landscapes into kinetic sculptures. Composers and sound designers can create works where music and aerial motion are intertwined.

Because the system is built on a content pipeline, it can support a network of venues sharing drone memories. Aerial memories captured in one country can be experienced in another, creating a distributed, ever‑growing archive of the world’s aerial perspectives.

SkySphere is uniquely suited to wellness because it offers calm, slow, spacious movement — qualities rarely found in immersive technology. The aerial perspective naturally induces a sense of openness and detachment from everyday concerns. In wellness mode, the system uses slow‑variant drone memories: gentle climbs, long glides, horizon‑level drift, and soft environmental audio.

While the applications describe where the system can be deployed, the experience design describes what a visitor actually feels. SkySphere is designed as a sensory arc — a gradual transition from grounded awareness into aerial presence, followed by a period of exploration, and finally a gentle return. The experience is not simply a sequence of visuals; it is a carefully shaped shift in perception, where the visitor’s body, senses, and attention are slowly retuned to accept a nonhuman perspective as natural.

The experience begins before the visitor enters the sphere. A short orientation introduces the idea of embodied aerial perspective in a calm, accessible way. Visitors learn that they will be seated at the centre of a spherical projection chamber, that the system responds to simple gestures, and that the experience is designed to be spacious rather than intense.

Stepping into the chamber is the first moment of transformation. The interior is dim, quiet, and visually neutral, allowing the visitor’s attention to settle. The haptic chair sits at the centre, subtly illuminated. Once seated and secured, the chamber door closes, and the outside world disappears.

The transition from grounded reality to aerial presence is gentle and deliberate. The sphere brightens into a soft horizon glow, with cloud textures or sky gradients emerging slowly. The haptic platform introduces micro-movements — a slight vertical drift, a gentle sway — signalling to the body that a new mode of perception is beginning.

The environment resolves into the first drone memory — a canyon, coastline, forest canopy, glacier, or cityscape. The visitor is now inside the drone’s recorded world. The system begins with a slow, stable segment to establish orientation before opening into a gentle forward glide.

Once orientation is established, the system opens into controlled exploration. The visitor can gesture upward to climb, downward to descend, sideways to drift, or forward to advance. The system interprets these gestures every few seconds and transitions to the appropriate segment in the drone memory graph. Control is soft rather than mechanical; the visitor influences a flow rather than operating a vehicle. The system always selects the smoothest, most coherent path that matches the visitor’s intent, ensuring that even when direction changes, the environment remains visually continuous, motion‑synchronised, and acoustically aligned. This is the essence of the experience: agency without cognitive load, movement without effort, and exploration without the burden of piloting.

After a few minutes, visitors typically enter a psychological state the system is designed to evoke — a state known as aerial drift. Self‑awareness softens. Environmental attention heightens. The sense of floating becomes more pronounced. Internal tempo slows. The combination of slow motion, panoramic visuals, and spatial audio creates a meditative, almost dreamlike state. This is where the experience transcends entertainment and becomes a form of aerial mindfulness — a temporary suspension of ground‑bound perception. The visitor is not watching a landscape; they are inhabiting it.

Every journey includes at least one reveal — a moment where the environment opens unexpectedly. The visitor might emerge from a canyon into a vast plain, rise above a forest canopy into sunlight, drift over a cliff edge into a sweeping valley, or climb through fog into clear sky. These reveals are not spectacles or shocks; they are calm expansions, designed to evoke awe without overwhelming the senses. They anchor the emotional arc of the experience, providing a moment of scale, clarity, and breath.

The experience concludes with a controlled descent back to a neutral aerial state. The environment gradually softens: fewer details, wider horizons, gentler colours. The haptic platform reduces amplitude and frequency, returning the body to stillness. Environmental audio dissolves into a soft atmospheric tone. The visitor is gently returned to grounded awareness, without abrupt transitions. The descent is not a landing; it is a re‑entry into the physical world, paced to preserve the calm state induced by the aerial journey.

The sphere fades to a neutral sky or gradient. The chair returns to its resting position. The chamber door opens. Visitors often describe a sense of lightness, calm, and expanded perspective — as if they have briefly stepped outside their usual frame of reference. The experience ends not with a jolt, but with a quiet re‑entry. Many visitors pause before leaving, taking a moment to recalibrate to the grounded world. The transition is gentle, allowing the aerial state to linger as a residual sensation.

SkySphere establishes a new category of embodied media — calm rather than intense, spatial rather than screen‑based, and grounded in real environments rather than synthetic worlds. By unifying aerial capture, multi-sensory synchronisation, and intuitive interaction, the system enables visitors to experience flight as a perceptual state rather than a visual effect. Its modular architecture, scalable content pipeline, and broad application range position it as a long‑term platform for entertainment, education, wellness, tourism, and creative expression.

As new drone memories are captured and new venues come online, the SkySphere becomes not just an attraction, but a growing global archive of the world from above — a shared, evolving record of landscapes, cultures, and environments experienced through the quiet, contemplative perspective of flight.

If you’d like to explore this concept further, feel free to reach out anytime.
